Aqua Flo Circ Master 115 CMHP Circulation Pump 02093000-2010
Couldn't load pickup availability

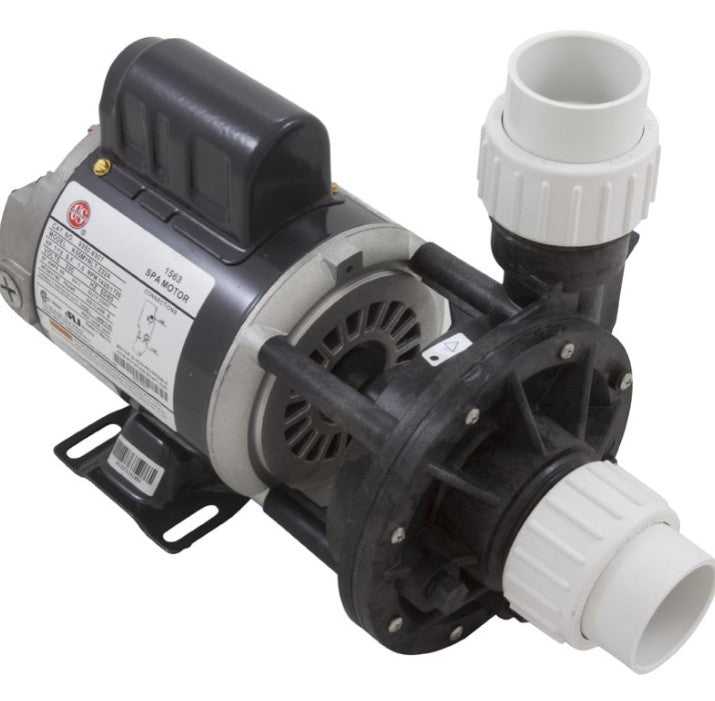

Aqua Flo CMHP Circ Master 115V Circulation Pump 02093000-2010
02093000-2010 is a side discharge 115V circulation pump used Gecko Aqua Flo. This is a 1/12 horsepower pump (previously was listed as 1/15 hp) that runs 1725rmp and is used for circulation, filtration and heating. This is not the main jet pump used spas.
As always if it is a part we sell it is a part we have worked with which means we can give you comprehensive tech support.
This Circulation Pump 02093000-2010 Specs:
- 115 Volts
- 1.3 Amps.
- 1750 Rpm
- 1-1/2" Suction and Discharge
- Side Discharge
Spa Parts Experts only sells new pumps and motors. We can not stress enough the unreliability of reconditioned or rebuilt spa pumps.
Technical and Installation:
- Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
- Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
- Please see How to Wire a Spa Pump to wire the pump amp cord.
Manufacturer: Aqua Flo by Gecko
Part Number: 02093000-2010
Manufacturer Warranty: 1 year part
Alternative for: 02093000-2010 1-00-0154 02093637-2 ECO24-7 (Coleman) 34-402-1140 02093000-3010 02093005-2510 02093009-2500 02093370-2010 02093370-3010 02093460-2 02093460-2010 02093460-2100 02093460-2110 02093460-2180 02093460-2500 02093460-2510 02093460-2580 02093460-3510 02093627-2010 02093627-2110 02093627-2510 02093627-3010 02093628-2010 02093628-3010 02093635-2 02093635-2000 02093635-2010 02093636-2 02093644 02093677-2 02407720-2 02410005-2 02410362-2 02410433-2 321810 5KCP35DNB819X K55MYGJN-8255
Remember we have hands on service experience with every product we sell, so we are available with tech support, problem diagnoses, installation help, and should it be needed warranty issues.
Share
Frequently Asked Questions
A spa air blower forces air into the spa's air plumbing system to create bubbles through the air jets. This produces the bubbling massage effect many hot tubs are known for and enhances the overall hydrotherapy experience.
No. Some spas use only water jets that mix air through a venturi system. Spas that include a dedicated air blower produce stronger bubbles and a more intense massage effect.
Common signs of a failing spa air blower include: No bubbles coming from the air jets, Loud humming or grinding noises, The blower not turning on, Weak or inconsistent airflow. If your spa previously had strong bubbles and they suddenly stopped, the air blower may need to be replaced.
Spa air blowers are commonly available in 1.0 HP, 1.5 HP, and 2.0 HP models. The correct size depends on the number of air jets and the plumbing length in your spa. Matching the horsepower of your existing blower is usually the best option.
Yes. If water flows backward into the blower it can damage the motor. This is why most spa systems include a check valve in the air line to prevent water from reaching the blower.
A loud blower can be caused by: Worn motor bearings, Debris inside the blower housing, Airflow restrictions in the plumbing, A failing blower motor. If the noise continues to get worse, replacement may be necessary.
Many spa owners can replace an air blower if they are comfortable with basic electrical connections. However, if you are unsure about wiring or spa electrical components, professional installation is recommended.
No. An air blower simply pushes air into the spa plumbing. Some models have heated air features that warm the air slightly for comfort, but they do not heat the spa water.
