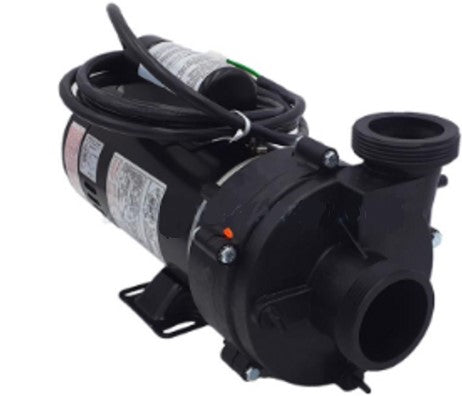

P614206 Ultimax 2-Speed Pump 48 Frame, 115V

P614206 Ultimax 2-Speed Pump 48 Frame, 115V

• Includes Pump Cord
• Speed:  2
• Frames:  48FR
• Intake: 2"
• Discharge Type:  Side
• Discharge Size: 2"
• Voltage: 115V
• Inlet/Outlet OD:  3"

Notes: Wet-end can be rotated to match any plumbing configuration., Wet-end cover is held on with 5 bolts

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use the following gaskets/orings:
• 2" Pump Union O-Ring 805-0230 (6000-645)
• 711-4010 Waterway Heater Flat Gasket
• 21619 Balboa ® | Heater Coupling Gasket 2"
