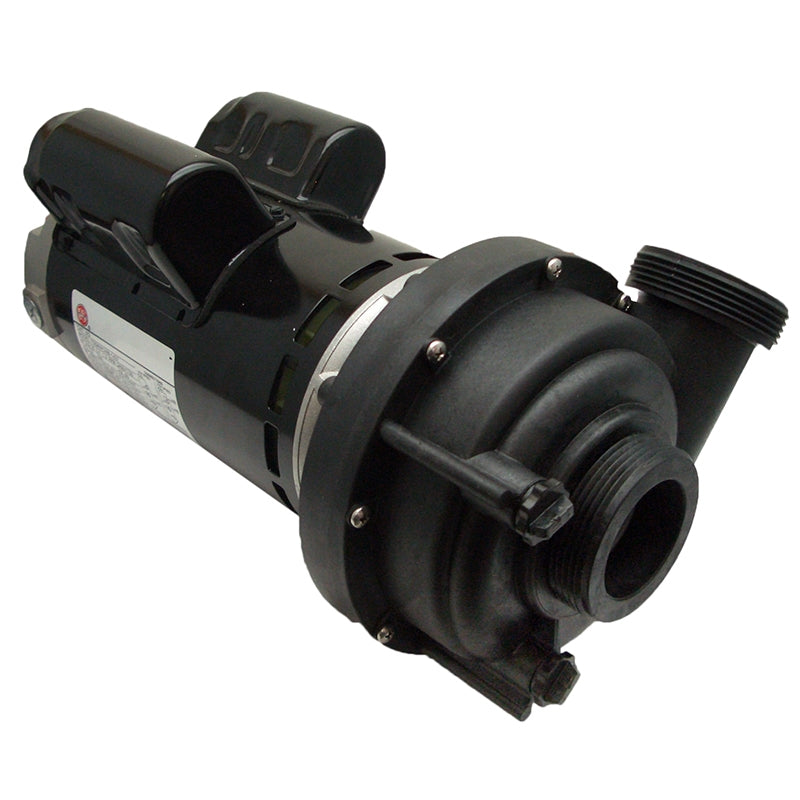

6500-343 TheraMax ®2-Speed, 2.5HP, 230V, 48FR, Spa Pump

Sundance Spas ® Theramax 2.5HP, 2-6500-343 Sundance ® TheraMax ®Speed, Baseless  Spa Pump

Sundance ® Spa pump 2.5 HP 2 speed, 230-240 volts.

Features:

• Baseless
• Rremovable motor base that can rotate to any position you need

Product Specifications:

• 2.5 Horsepower
• 2 Speed
• 48 Frame
• 230 Volts
• 11 Amp
• 2" Suction and Discharge
• Side Discharge
• Discharge and outer  diameter of 3 1/16".

This pump is a direct replacement for several older part numbers. It features specs of 2.5 Horsepower, 48 Frame, 230 Volts, 12 AMP, 2" Suction and Discharge, and Side Discharge. It is perfect for those looking to update their current system or replace an old pump. With its two-speed design, you can customize your massage experience to find the ideal level of relaxation for you.

Note:  Bracket part number is  6000-532

Technical and Installation:

• Pump is manufactured in the wet-end orientation shown, but you can simply  rotate your wet end  to match your spa plumbing, if needed.
• Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
• Please see  How to Wire a Spa Pump  to wire the pump amp cord.
• Can use any the following gaskets/orings (choose one x 2):
  • 2" Pump Union O-Ring 805-0230 (6000-645)
  • 711-4010 Waterway Heater Flat Gasket
  • 21619 Balboa ® | Heater Coupling Gasket 2"



SKU: 6500-343
MPN: 6500-343

SKU:  Theramax2
MPN: 6500-343
Model / Series:  Theramax2
UPC:  682318852627
Manufacturer: Sundance/Jacuzzi ®
Warranty: 1 year (with manufacturer)

can replace 6500-261, 6500-761, 6500-128, theraflo, theramax
-----------------------------------
